Quick DP Switch Install Guide

Dish Pro set up instructions

DISH 500 with DishPro Twin LNBF and Dish 300

with Single DishPro LNBF and a DP34 Switch

Connect both ports (connections) of the DishPro Twin LNBF to any two ports on the DP34 Switch that are marked “to Dish.” Connect the DishPro Single LNBF to any port of the DP34 marked “to Dish.” Make sure there is no more than 200 feet of cable between the receiver and the LNBF.

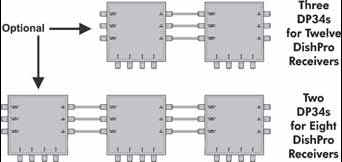

Connecting Several DP34 Switches

 See Muti-Switch

Connect DishPro LNBFs to lunch amp LA088 or LA 143 Connect jumpers together to ports marked “to Dish.” on DP 34  Connect DP34 Switches together between ports marked “to Additional Switch” or “to Dish.” Make sure there is no more than 350 feet of cable between the receiver and the LNBF. You must have at least one satellite receiver connected to each DP34 switch in order to provide power to that switch.
