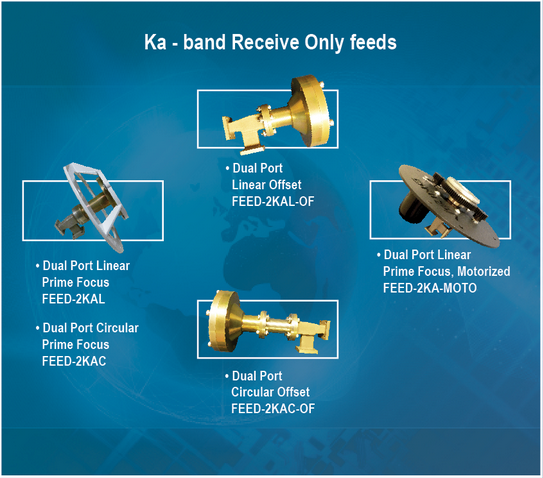

SatelliteDish.com  954-941-8883 - Ka Band Dual Port Linear Feed - Ka-Band Dual Port Circular Feed - Ka-Band Dual Port Linear Offset Feed - Ka-Band Dual Port Circular Offset Feed - Ka-Band Dual Port Linear Motorized. All Ka-band feeds are wide band, 17 – 22 GHz.

 SatelliteDish.com   954-941-8883

Feeds covering C, X, Ku, S, L, DBS, V, W, Q, Ka and Multi Band / Tri-Band Transmit Receive Feedhorns. Waveguide filters and diplexers from 1-40 Ghz for the commercial, military. A full array of standard filters and diplexers is available for the various commercial and military frequency band - Transmit Reject Filter - Model RQT-KuTRF-V1. Pass band: 10.75 to 12.25 GHz. Reject Band: 13.75 to 14.5 GHz. Transmit Reject Filter. Model RQT-KuTRF-V2. Pass Band 10.7 to 10.95 GHz. Reject Band: 13.0 to 12.25 GHz. Transmit Reject Filter High Power Ku. Model 18255. Ideal for High Power VSAT applications, provides deep rejection.

Receive Reject Filter Ku-Band. Model RQT-KuRRF-V1. Pass band Frequency: 12.75 to 13.75 GHz. Reject Band :DC to 12.25 GHz. Ku-band Multi-Purpose Receive Filter. Model 9349. Provide isolation from the uplink band ( 14~14.5 GHz) and suppresses potencial interference from frequencies located below the receive band. Americas Asia Europe, Middle East & Africa
