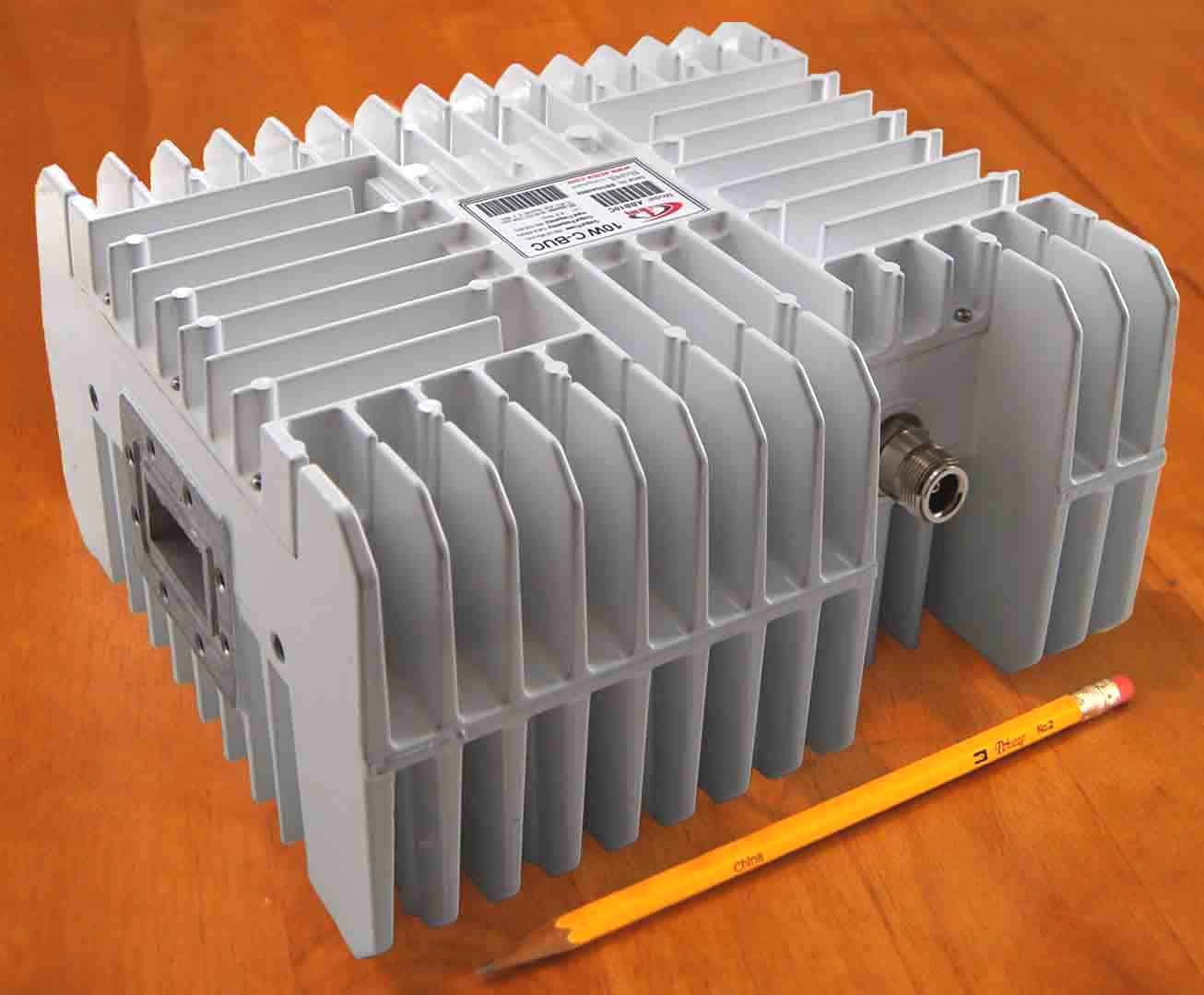

ABA10C / ABA10CF - 10W C-Band BUC
ABA10C / ABA10CF - 10W C-Band BUC

This unit features:

No “Cooling Fan” Solution

High Efficiency Output Power (10W minimum @ P1dB over temperature)

Three Power Supply Selections:

DC: +48Vdc Operation (+36 to +52 Vdc)

DC: N/A Operation

AC: 110V/220V



Model

RF Frequency

Local Frequency

IF Frequency

Output Power

Connector

ABA10C

5.850 to 6.425 GHz

4.90 GHz

950 to 1,525 MHz

10W (+40 dBm min.)

N-Type

ABA10CF

5.850 to 6.425 GHz

4.90 GHz

950 to 1,525 MHz

10W (+40 dBm min.)

F-Type





Parameter

Value

Output Interface

Waveguide, CPR-137

Output Power @ P1 dB

+40 dBm minimum over temperature

Conversion Gain

54 dB Min.,64 dB nominal

Required Frequency

External Reference Input Power

Phase Noise

10 MHz (sine-wave)
-5 to +5 dBm @ Input port
-30 dBc/Hz max. @ 10Hz
-60 dBc/Hz max. @ 100 Hz

-70 dBc/Hz max. @ 1 kHz

-80 dBc/Hz max. @ 10 kHz

-90 dBc/Hz max. @ 100 kHz

-100 dBc/Hz max. @ 1 MHz



Input V.S.W.R.

2:1 max

Output V.S.W.R.

2:1 max



Parameter

Value

Power Option A

+18 VDC~+24 VDC via IF 77W max

Power Option B

+38 VDC~+60 VDC via IF 75W max

Power Option C

+38 VDC~+60 VDC via MS Conn. 75W max

Mute

Shut off the HPA in case of LO unlocked

Input Interface

N-type, female (50 Ohm)

F-type, female (75 Ohm)

Power Consumption

77 W max.

Operating Temperature

-40 to +55 degrees C

Storage Temperature

-40 to +75 degrees C

Size(mm)

212 (L) x 194 (W) x 103 (H)



Weight(kg)

4.2 (max.)
