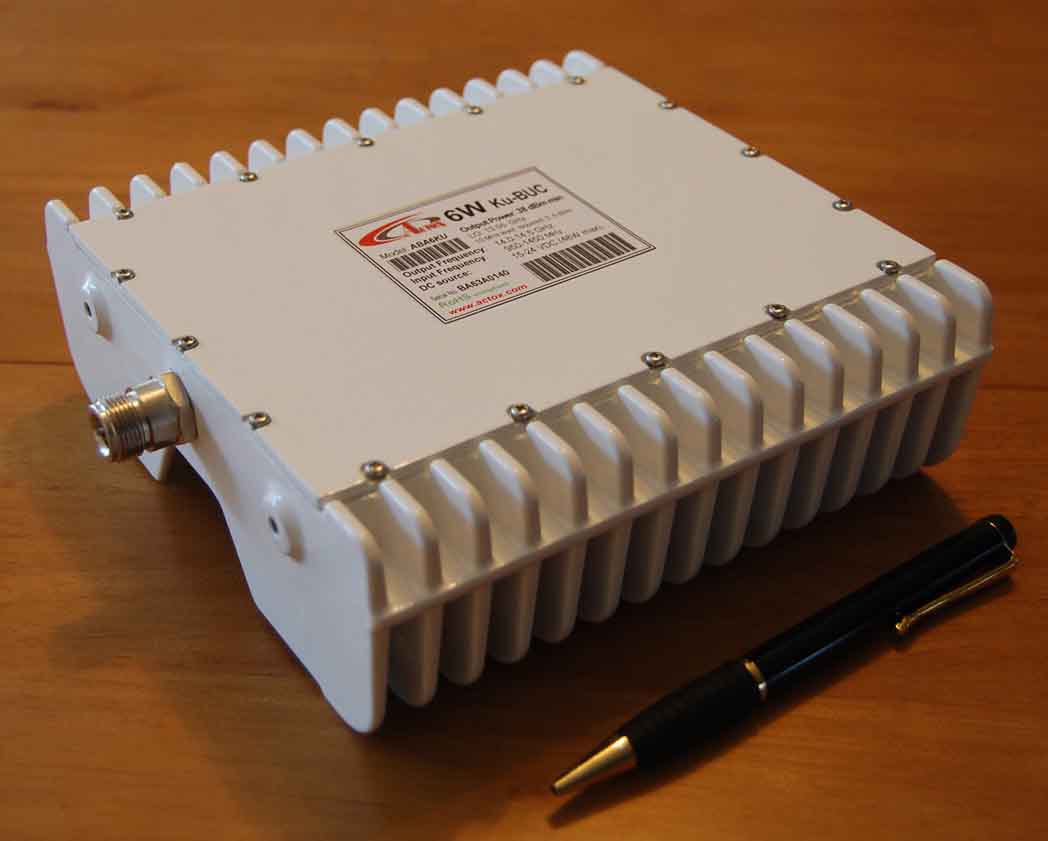

ABA6KU/ABA6KUF - 6W Ku-Band Block Up Converter

This unit features:

Small Size and Light Weight

High Efficiency Output Power (6W minimum @P1dB over temperature)

Low Power Consumption



Model

RF Frequency

Local Frequency

IF Frequency

Output Power

Connector

ABA6KU

14.0 to 14.5 GHz

13.05 GHz

950 to 1,450 MHz

6W (+38 dBm min.)

N-Type

ABA6KUF

14.0 to 14.5 GHz

13.05 GHz

950 to 1,450 MHz

6W (+38 dBm min.)

F-Type





Parameter

Value

Output Interface

Waveguide, WR-75

Output Power @ P1 dB

+38 dBm minimum over temperature

Conversion Gain

53 dB Min.,60 dB nominal

Required Frequency

External Reference Input Power

Phase Noise

10 MHz (sine-wave)
-5 to +5 dBm @ Input port
-30 dBc/Hz max. @ 10Hz
-60 dBc/Hz max. @ 100 Hz

-70 dBc/Hz max. @ 1 kHz

-80 dBc/Hz max. @ 10 kHz

-90 dBc/Hz max. @ 100 kHz

-100 dBc/Hz max. @ 1 MHz



Input V.S.W.R.

2:1 max

Output V.S.W.R.

2:1 max



Parameter

Value

DC Power Requirement

+15 to +24 V

Mute

Shut off the HPA in case of LO unlocked

Input Interface

N-type, female (50 Ohm)

F-type, female (75 Ohm)

Power Consumption

44 W max.

Operating Temperature

-40 to +55 degrees C

Storage Temperature

-40 to +75 degrees C

Size(mm)

176 (L) x 174 (W) x 60 (H)



Weight(kg)

1.9 (max.)
