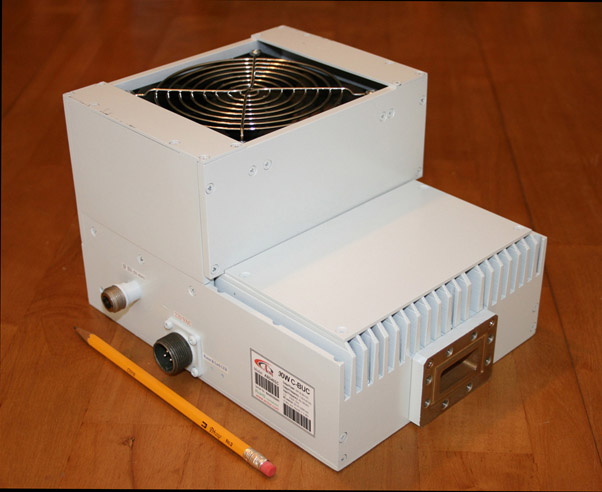

ABD30C - 30W C-Band BUC

This unit features:

High Efficiency Output Power (30W minimum @ P1dB over temperature)

Smallest package size and weight

110/220 VAC Autoranging via MS connector Input

RoHS Compliant

Power and Lock Status LED

For the Complete description please see the pdf file below.



Model

RF Frequency

Local Frequency

IF Frequency

Output Power

Connector

ABD30C

5.850 to 6.425 GHz

4.90 GHz

950 to 1,525 MHz

30W (+45 dBm min.)

N-Type

ABD30CF

5.850 to 6.425 GHz

4.90 GHz

950 to 1,525 MHz

30W (+45 dBm min.)

F-Type





Parameter

Value

Output Interface

Waveguide, CPR-137

Output Power @ P1 dB

+45 dBm minimum over temperature

Conversion Gain

68 dB nominal

Required Frequency

External Reference Input Power

Phase Noise

10 MHz (sine-wave)
-5 to +5 dBm @ Input port
-100 dBc/Hz max. @ 100KHz
-90 dBc/Hz max. @ 10KHz

-70 dBc/Hz max. @ 1kHz

-80 dBc/Hz max. @ 1kHz

-70 dBc/Hz max. @ 100Hz



Input V.S.W.R.

2:1 max

Output V.S.W.R.

2:1 max



Parameter

Value

Power Option A

110/220 VAC 180W max

Mute

Shut off the HPA in case of LO unlocked

Input Interface

N-type, female (50 Ohm)

Power Consumption

180 W max.

Operating Temperature

-40 to +55 degrees C

Storage Temperature

-40 to +75 degrees C

Size(mm)

237 (L) x 182 (W) x 150 (H)



Weight(kg)

4.9kg (max.)
