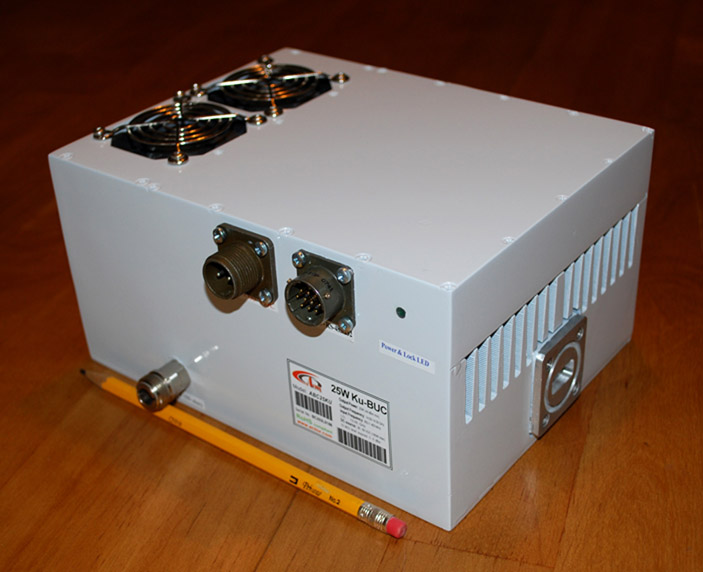

ABC25KU - 25W Ku-Band BUC

This unit features:

High Efficiency Output Power (25W minimum @ P1dB over temperature)

DC: +48 VDC Operation (+38 to +60 VDC)





Option: Separation of power supply port (MS-connector)



Model

RF Frequency

Local Frequency

IF Frequency

Output Power

Connector

ABC25KU

14.0 to 14.50 GHz

13.05 GHz

950 to 1,700 MHz

25W (+44 dBm min.)

N-Type

ABC25KUF

14.00 to 14.50 GHz

13.05 GHz

950 to 1,700 MHz

25W (+44 dBm min.)

F-Type





Parameter

Value

Output Interface

Waveguide, WR-75

Output Power @ P1 dB

+44 dBm minimum over temperature

Conversion Gain

61 dB nom.

Required [Frequency]

External Reference [Input Power]

[Phase Noise]

10 MHz (sine-wave)
-5 to +5 dBm @ Input port
-65 dBc/Hz max. @ 100 kHz
-75 dBc/Hz max. @ 1 kHz

-85 dBc/Hz max. @ 10 kHz

L.O. Phase Noise

-60 dBc/Hz max. @ 100 Hz

-70 dBc/Hz max. @ 1 kHz

-80 dBc/Hz max. @ 10 kHz

-90 dBc/Hz max. @ 100 kHz

Input V.S.W.R.

2:1 max

Output V.S.W.R.

2:1 max



Parameter

Value

Power Requirement

(+38 to +60 VDC),



Mute

Shut off the HPA in case of L.O. unlocked

Input Interface

N-type, female (50 Ohm) [ABC25KU]

F-type, female (75 Ohm)

[ ABC25KU]

Power Consumption

160 W max.

Operating Temperature

-40 to +55 degrees C

Storage Temperature

-40 to +75 degrees C

Size & Weight

216 mm (L) x 161 mm (W) x 111 mm (H), [8.4”(L) x 7.3” (W) x 4.1” (H)] 4.4 kg max. [9.8 lbs max.]
