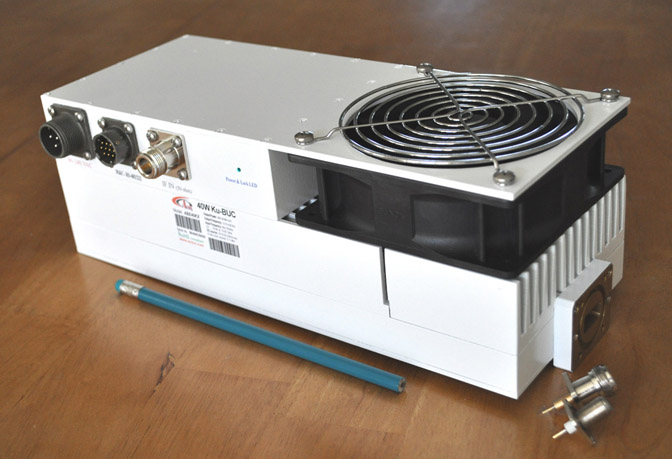

ABC40KX/ABC40KXF - 40W Ext. Ku-Band BUC

This unit features:

“Cooling Fan” Solution

High Efficiency Output Power (40W minimum @ P1dB over temperature)

DC: Auto-ranging (36 - 58VDC)

Option: Separation of power supply port (MS-connector)



Model

RF Frequency

Local Frequency

IF Frequency

Output Power

Connector

ABC40KX

13.75 to 14.50 GHz

12.80 & 13.05 GHz

950 to 1,700 MHz

40W Linear (+46 dBm min.)

N-Type

ABC40KXF

13.75 to 14.50 GHz

12.80 & 13.05 GHz

950 to 1,700 MHz

40W Linear (+46 dBm min.)

F-Type





Parameter

Value

Output Interface

Waveguide, WR-75

Output Power @ P1 dB

+46 dBm minimum over temperature

Conversion Gain

65 dB nom.

Required [Frequency]

External Reference [Input Power]

[Phase Noise]

10 MHz (sine-wave)
-5 to +5 dBm @ Input port
-95 dBc/Hz max. @ 100 kHz
-75 dBc/Hz max. @ 1 kHz

-85 dBc/Hz max. @ 10 kHz

L.O. Phase Noise

-65 dBc/Hz max. @ 100 Hz

-75 dBc/Hz max. @ 1 kHz

-85 dBc/Hz max. @ 10 kHz

-95 dBc/Hz max. @ 100 kHz

Input V.S.W.R.

2:1 max

Output V.S.W.R.

2:1 max



Parameter

Value

Power Requirement

Option: DC Power Supply

(36-58VDC),

Mute

Shut off the HPA in case of L.O. unlocked

Input Interface

N-type, female (50 Ohm) [ABC40KX]

F-type, female (75 Ohm)

[ ABC40KXF]

Power Consumption

275 W max.

Operating Temperature

-40 to +55 degrees C

Storage Temperature

-40 to +75 degrees C

Size & Weight

309 mm (L) x 120 mm (W) x 109 mm (H), [12.36”(L) x 4.8” (W) x 4.36” (H)] 4.2 kg max. [9.24 lbs max.]
