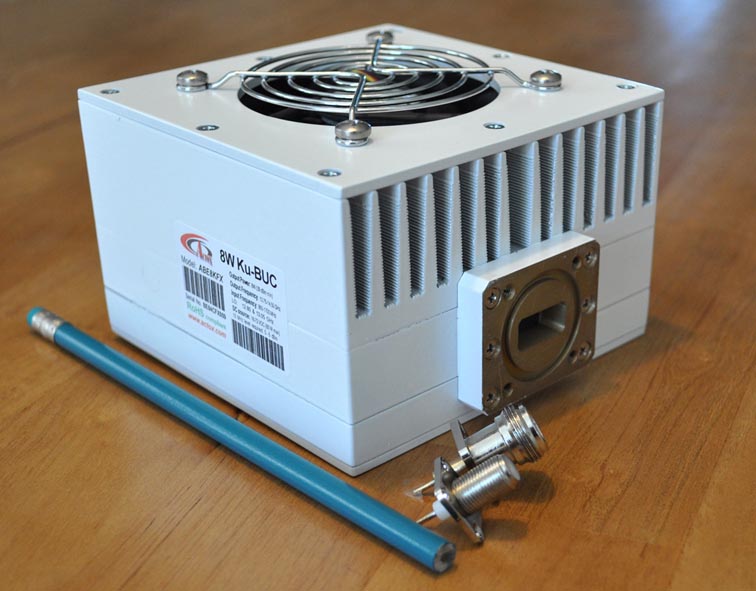

ABE8KFX/ABE8KFXF - 8W Ku-band BUC

This unit features:

“Cooling Fan Solution”

High Efficiency Output Power (8W minimum @ P1dB over temperature)

Auto-rangin Power Supply :

DC: (+18 to +72 VDC)

Option: Separation of power supply port (MS-connector)



Model

RF Frequency

Local Frequency

IF Frequency

Output Power

Connector

ABE8KFX

13.75 to 14.50 GHz

12.80 & 13.05 GHz

950 to 1,700 MHz

8W Linear (+39 dBm min.)

N-Type

ABE8KFXF

13.75 to 14.50 GHz

12.80 & 13.05GHz

950 to 1,700 MHz

8W Linear (+39 dBm min.)

F-Type





Parameter

Value

Output Interface

Waveguide, WR-75

Output Power @ P1 dB

+39 dBm minimum over temperature

Conversion Gain

65 dB Min.,68 dB nominal

Required Frequency

External Reference Input Power

Phase Noise

10 MHz (sine-wave)
-5 to +5 dBm @ Input port
-55 dBc/Hz max. @ 10Hz
-65 dBc/Hz max. @ 100 Hz

-75 dBc/Hz max. @ 1 kHz

-85 dBc/Hz max. @ 10 kHz

-95 dBc/Hz max. @ 100 kHz

-120 dBc/Hz max. @ 1 MHz



Input V.S.W.R.

2:1 max

Output V.S.W.R.

2:1 max



Parameter

Value

Power Option

+18 VDC~+72 VDC via IF 80W max

Mute

Shut off the HPA in case of LO unlocked

Input Interface

N-type, female (50 Ohm)

F-type, female (75 Ohm)

Power Consumption

80 W max.

Operating Temperature

-40 to +55 degrees C

Storage Temperature

-40 to +70 degrees C

Size(mm)

120 (L) x 120 (W) x 82 (H)



Weight(kg)

2.1 (max.)
