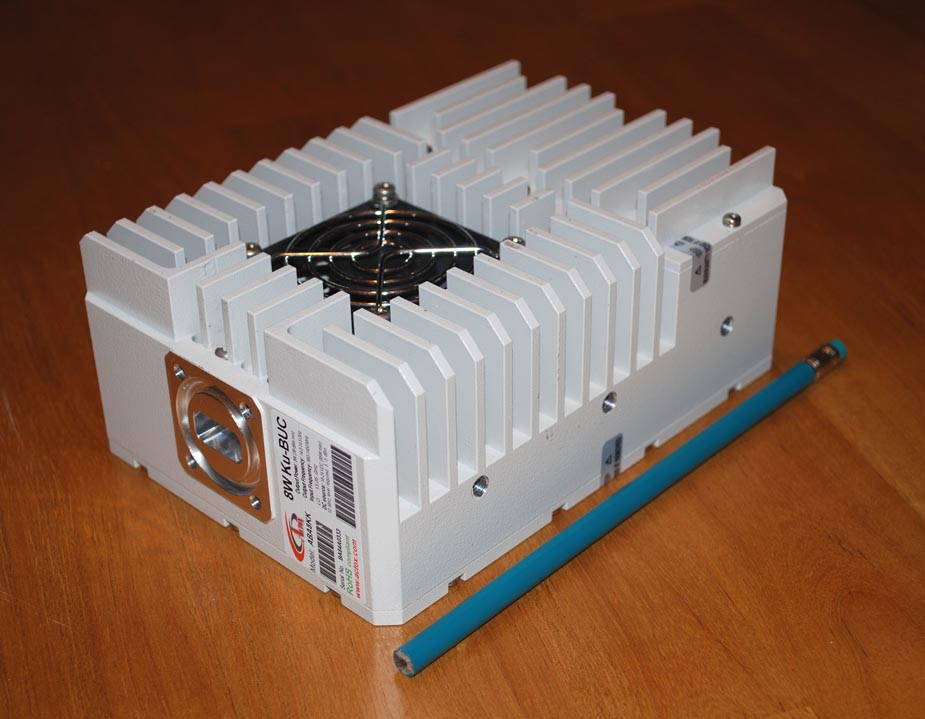

ABE8KK - 8W  Ku-Band BUC

This unit features:

High Efficiency Output Power (8W minimum @ P1dB over temperature)

DC: Auto-ranging and Auto-detected Power Supply, +18 VDC~+72 VDC via IF Cable or MS Connector, 85W Max



Model

RF Frequency

Local Frequency

IF Frequency

Output Power

Connector

ABE8KK

14.00 to 14.5 GHz

13.05 GHz

950 to 1,750 MHz

8W Linear (+39 dBm min.)

N-Type

ABE8KKF

14.00 to 14.5 GHz

13.05 GHz

950 to 1,750 MHz

8W Linear (+39 dBm min.)

F-Type





Parameter

Value

Output Interface

Waveguide, WR-75

Output Power @ P1 dB

+39 dBm minimum over temperature

Conversion Gain

65 dB Min.,68 dB nominal

Required Frequency

External Reference Input Power

Phase Noise

10 MHz (sine-wave)
-5 to +5 dBm @ Input port
-35 dBc/Hz max. @ 10Hz
-65 dBc/Hz max. @ 100 Hz

-75 dBc/Hz max. @ 1 kHz

-85 dBc/Hz max. @ 10 kHz

-95 dBc/Hz max. @ 100 kHz

-120 dBc/Hz max. @ 1 MHz



Input V.S.W.R.

2:1 max

Output V.S.W.R.

2:1 max



Parameter

Value

Power Option A

+18 VDC~+72 VDC via IF or MS Connector 85W max

Mute

Shut off the HPA in case of LO unlocked

Input Interface

N-type, female (50 Ohm)

F-type, female (75 Ohm)

Power Consumption

85 W max.

Operating Temperature

-40 to +55 degrees C

Storage Temperature

-40 to +75 degrees C

Size(mm)

170 (L) x 120 (W) x 70 (H)



Weight(kg)

3.1 (max.)
