ABK20C - 20W C-Band BUC
ABK20C - 20W C-Band BUC

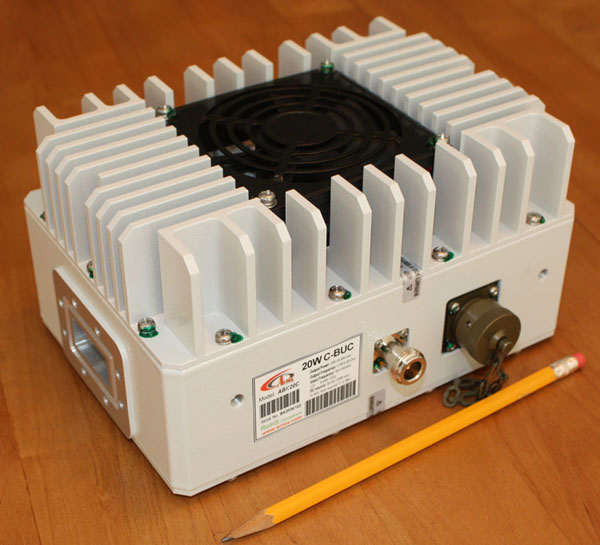

This unit features:

High Efficiency Output Power (20W minimum @ P1dB over temperature)

Smallest package size and weight

48VDC or 24VDC via MS connector Input

RoHS Compliant

Power and Lock Status LED

For the Complete description please see the pdf file below.



Model

RF Frequency

Local Frequency

IF Frequency

Output Power

Connector

ABK20C

5.850 to 6.625 GHz

4.90 GHz

950 to 1,725 MHz

20W (+43 dBm min.)

N-Type

ABK20CF

5.850 to 6.625 GHz

4.90 GHz

950 to 1,725 MHz

20W (+43 dBm min.)

F-Type





Parameter

Value

Output Interface

Waveguide, CPR-137

Output Power @ P1 dB

+43 dBm minimum over temperature

Conversion Gain

67 dB nominal

Required Frequency

External Reference Input Power

Phase Noise

10 MHz (sine-wave)
-5 to +5 dBm @ Input port
-100 dBc/Hz max. @ 100KHz
-90 dBc/Hz max. @ 10KHz

-70 dBc/Hz max. @ 1kHz

-80 dBc/Hz max. @ 1kHz

-70 dBc/Hz max. @ 100Hz



Input V.S.W.R.

2:1 max

Output V.S.W.R.

2:1 max



Parameter

Value

Power Option A

24/48VDC 165W max

Mute

Shut off the HPA in case of LO unlocked

Input Interface

N-type, female (50 Ohm)

Power Consumption

165 W max.

Operating Temperature

-40 to +55 degrees C

Storage Temperature

-40 to +85 degrees C

Size(mm)

208 (L) x 141 (W) x 110 (H)



Weight(kg)

3.6kg (max.)
