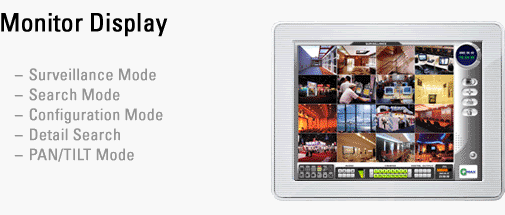

Screen
Split
Audio Control
Alarm Output
HDD Indicator
Backup
Pan/Tilt |
|
Smart
Search
Multi Search
Audio Search
Panorama
|
|
Camera,
Sensor, D/O
Schedule, Recording
Motion/Color
Audio, External Monitor
Network, Password
|
|
Panorama
Search
Zoom
Print
Backup
|
|
Camera,
Sensor, D/O Schedule, Recording Motion/Color Audio,
External Monitor Network, Password |
|
STB DVR Set Top Box DVR
TCP/IP
See Rack Mount Furniture. |
|
CPU |
Pentium4-2GHz |
OS |
Windows
2000(Windows98: CQNet4016, 1016) |
Main
Memory |
128 MB |
Graphic
Card |
AGP2X,
16M RAM or Higher |
HDD |
40GB |
FDD |
3.5
inch (1,44MB) |
Camera
Connector |
BNC |
Audio
Connector |
RCA |
Seneor,
D/O Connector |
10 PIN
Terminal Block |
Working
Temperature |
5¡¯C
~ 40¡¯C |
Dimension |
483(W)
x 178(H) X 440 (D)mm |
Weight |
18kg |
|
|
Model
CQNet |
7016 |
6016 |
5016 |
4016 |
3016 |
3009 |
2016 |
2004 |
1016 |
Camera
Input |
16CH |
16CH |
16CH |
16CH |
16CH |
9CH |
16CH |
4CH |
16CH |
Audio
Input |
8CH |
8CH |
4CH |
1CH |
8CH |
8CH |
4CH |
4CH |
1CH |
Display
Frame(fps) |
480 |
480 |
480 |
480 |
240 |
270 |
80~120 |
120 |
20~30 |
Recording
Frame(fps) |
240~480 |
160~240 |
80~120 |
20~30 |
240 |
270 |
80~120 |
120 |
20~30 |
Analog
Output |
2CH |
1Ch |
|
Resolution |
160x120
320x240, 640x240, 640x480 |
Sensor
Input |
8ports/
Normal Close |
Compression |
PI
Codec/Motion JPEG |
Alarm
Output |
8ports/Normal
Open |
Event
Type |
Motion,
Sensor, Audio |
PAN,
TILT, Zoom |
RS-422/485 |
Network |
Lan,
Internet, ISDN, PSTN, ADSL |
Backup |
RAID,
DAT, DVD, CD-RW |
Auto
Recovery |
watch-dog(H/W),
DVR doctor (S/W) |
|
DV116
$2,499.00
CPU:
|
Intel
Pentium 4 2.4Ghz |
|
Main
Board:
|
ATX |
Memory:
|
128MB |
HDD:
|
120Gb |
VGA Card:
|
ATI
Radeon 64Mb |
FDD:
|
3.5
Inch |
O/S:
|
Windows®
2000 |
Mouse,
Keyboard:
|
PS/2,
104Key |
Camera
Input:
|
16
Port |
Sensor
Input:
|
8
Port |
Audio:
|
1
Port |
Control
Output:
|
4
Port |
Display
Speed:
|
30FPS(NTSC),
20FPS(PAL) |
Recording
Speed:
|
30FPS(NTSC),
20FPS(PAL) |
Compression:
|
MPEG4,
MPEG4+ |
Resolution:
|
640x480,
320x240, 160x120 |
Size:
|
2
- 15 kbyte |
Motion
Detection:
|
10-Region
per channel/Adjustable sensitivity |
Recording
Mode:
|
Continuous,
Motion, Sensor, Pre-Alarm, Scheduled Recording |
Remote
Access:
|
PSTN,
ISDN, DSL, LAN and TCP/IP |
Backup
Device:
|
Standard:
CD-RW
Optional: 3.5", DAT, DVD-RW |
PAN/TILT/ZOOM:
|
RS-232,
422, 485 Interface (Option) |
Case Type:
|
Industrial
Case |
|
|
DV208
$3,150.00
CPU:
|
Intel
Pentium 4 2.4Ghz |
Main
Board:
|
ATX |
Memory:
|
128MB |
HDD:
|
120Gb |
VGA
Card:
|
ATI
Radeon 64Mb |
FDD:
|
3.5
Inch |
O/S:
|
Windows®
2000 |
Mouse,
Keyboard:
|
PS/2,
104Key |
Camera
Input:
|
8
Port |
Sensor
Input:
|
8
Port |
Audio:
|
4
Port |
Control
Output:
|
8
Port |
Display
Speed:
|
120
FPS(NTSC), 100FPS(PAL) |
Recording
Speed:
|
120
FPS(NTSC), 100FPS(PAL) |
Compression:
|
MPEG4,
MPEG4+ |
Resolution:
|
640x480,
320x240, 160x120 |
Size:
|
2
- 15 kbyte |
Motion
Detection:
|
10-Region
per channel/Adjustable sensitivity |
Recording
Mode:
|
Continuous,
Motion, Sensor, Pre-Alarm, Scheduled Recording |
Remote
Access:
|
PSTN,
ISDN, DSL, LAN and TCP/IP |
Backup
Device:
|
Standard:
CD-RW
Optional: 3.5", DAT, DVD-RW |
PAN/TILT/ZOOM:
|
RS-232,
422, 485 Interface (Option) |
Case
Type:
|
Industrial
Case |
|
DV216
$3,250.00
CPU:
|
Intel
Pentium 4 2.4Ghz |
Main
Board:
|
ATX |
Memory:
|
128MB |
HDD:
|
120Gb |
VGA
Card:
|
ATI
Radeon 64Mb |
FDD:
|
3.5
Inch |
O/S:
|
Windows®
2000 |
Mouse,
Keyboard:
|
PS/2,
104Key |
Camera
Input:
|
8
Port |
Sensor
Input:
|
8
Port |
Audio:
|
4
Port |
Control
Output:
|
8
Port |
Display
Speed:
|
120
FPS(NTSC), 100FPS(PAL) |
Recording
Speed:
|
120
FPS(NTSC), 100FPS(PAL) |
Compression:
|
MPEG4,
MPEG4+ |
Resolution:
|
640x480,
320x240, 160x120 |
Size:
|
2
- 15 kbyte |
Motion
Detection:
|
10-Region
per channel/Adjustable sensitivity |
Recording
Mode:
|
Continuous,
Motion, Sensor, Pre-Alarm, Scheduled Recording |
Remote
Access:
|
PSTN,
ISDN, DSL, LAN and TCP/IP |
Backup
Device:
|
Standard:
CD-RW
Optional: 3.5", DAT, DVD-RW |
PAN/TILT/ZOOM:
|
RS-232,
422, 485 Interface (Option) |
Case
Type:
|
Industrial
Case |
|
|
DV309
$3,499.00
CPU:
|
Intel
Pentium 4 2.4Ghz |
Main
Board:
|
ATX |
Memory:
|
128MB |
HDD:
|
240Gb |
VGA
Card:
|
ATI
Radeon 64Mb |
FDD:
|
3.5
Inch |
O/S:
|
Windows®
2000 |
Mouse,
Keyboard:
|
PS/2,
104Key |
Camera
Input:
|
9
Port |
Sensor
Input:
|
8
Port |
Audio:
|
8
Port |
Control
Output:
|
8
Port |
Display
Speed:
|
270
FPS(NTSC), 260FPS(PAL) |
Recording
Speed:
|
270
FPS(NTSC), 260FPS(PAL) |
Compression:
|
MPEG4,
MPEG4+ |
Resolution:
|
640x480,
320x240, 160x120 |
Size:
|
2
- 15 kbyte |
Motion
Detection:
|
10-Region
per channel/Adjustable sensitivity |
Recording
Mode:
|
Continuous,
Motion, Sensor, Pre-Alarm, Scheduled Recording |
Remote
Access:
|
PSTN,
ISDN, DSL, LAN and TCP/IP |
Backup
Device:
|
Standard:
CD-RW
Optional: 3.5", DAT, DVD-RW |
PAN/TILT/ZOOM:
|
RS-232,
422, 485 Interface (Option) |
Case
Type:
|
Industrial
Case |
|
DV316
$3,999.00
CPU:
|
Intel
Pentium 4 2.4Ghz |
Main
Board:
|
ATX |
Memory:
|
512MB |
HDD:
|
240Gb |
VGA
Card:
|
ATI
Radeon 64Mb |
FDD:
|
3.5
Inch |
O/S:
|
Windows®
2000 |
Mouse,
Keyboard:
|
PS/2,
104Key |
Camera
Input:
|
16
Port |
Sensor
Input:
|
8
Port |
Audio:
|
8
Port |
Control
Output:
|
8
Port |
Display
Speed:
|
240
FPS(NTSC), 230FPS(PAL) |
Recording
Speed:
|
240
FPS(NTSC), 230FPS(PAL) |
Compression:
|
MPEG4,
MPEG4+ |
Resolution:
|
640x480,
320x240, 160x120 |
Size:
|
2
- 15 kbyte |
Motion
Detection:
|
10-Region
per channel/Adjustable sensitivity |
Recording
Mode:
|
Continuous,
Motion, Sensor, Pre-Alarm, Scheduled Recording |
Remote
Access:
|
PSTN,
ISDN, DSL, LAN and TCP/IP |
Backup
Device:
|
Standard:
CD-RW
Optional: 3.5", DAT, DVD-RW |
PAN/TILT/ZOOM:
|
RS-232,
422, 485 Interface (Option) |
Case
Type:
|
Industrial
Case |
|
|
DV416
$4,150.00
CPU:
|
Intel
Pentium 4 2.4Ghz |
Main
Board:
|
ATX |
Memory:
|
128MB |
HDD:
|
240Gb |
VGA
Card:
|
ATI
Radeon 64Mb |
FDD:
|
3.5
Inch |
O/S:
|
Windows®
2000 |
Mouse,
Keyboard:
|
PS/2,
104Key |
Camera
Input:
|
16
Port |
Sensor
Input:
|
8
Port |
Audio:
|
1
Port |
Control
Output:
|
8
Port |
Display
Speed:
|
480
FPS(NTSC), 460FPS(PAL) |
Recording
Speed:
|
30
FPS(NTSC), 20FPS(PAL) |
Compression:
|
MPEG4,
MPEG4+ |
Resolution:
|
640x480,
320x240, 160x120 |
Size:
|
2
- 15 kbyte |
Motion
Detection:
|
10-Region
per channel/Adjustable sensitivity |
Recording
Mode:
|
Continuous,
Motion, Sensor, Pre-Alarm, Scheduled Recording |
Remote
Access:
|
PSTN,
ISDN, DSL, LAN and TCP/IP |
Backup
Device:
|
Standard:
CD-RW
Optional: 3.5", DAT, DVD-RW |
PAN/TILT/ZOOM:
|
RS-232,
422, 485 Interface (Option) |
Case
Type:
|
Industrial
Case |
|
DV516
$4,995.00
CPU:
|
Intel
Pentium 4 2.4Ghz |
Main
Board:
|
ATX |
Memory:
|
128MB |
HDD:
|
360Gb |
VGA
Card:
|
ATI
Radeon 64Mb |
FDD:
|
3.5
Inch |
O/S:
|
Windows®
2000 |
Mouse,
Keyboard:
|
PS/2,
104Key |
Camera
Input:
|
16
Port |
Sensor
Input:
|
8
Port |
Audio:
|
4
Port |
Control
Output:
|
8
Port |
Display
Speed:
|
480
FPS(NTSC), 460FPS(PAL) |
Recording
Speed:
|
120
FPS(NTSC), 110FPS(PAL) |
Compression:
|
MPEG4,
MPEG4+ |
Resolution:
|
640x480,
320x240, 160x120 |
Size:
|
2
- 15 kbyte |
Motion
Detection:
|
10-Region
per channel/Adjustable sensitivity |
Recording
Mode:
|
Continuous,
Motion, Sensor, Pre-Alarm, Scheduled Recording |
Remote
Access:
|
PSTN,
ISDN, DSL, LAN and TCP/IP |
Backup
Device:
|
Standard:
CD-RW
Optional: 3.5", DAT, DVD-RW |
PAN/TILT/ZOOM:
|
RS-232,
422, 485 Interface (Option) |
Case
Type:
|
Industrial
Case |
|
|
DV616
$5,150.00
CPU:
|
Intel
Pentium 4 2.4Ghz |
Main
Board:
|
ATX |
Memory:
|
128MB |
HDD:
|
360Gb |
VGA
Card:
|
ATI
Radeon 64Mb |
FDD:
|
3.5
Inch |
O/S:
|
Windows®
2000 |
Mouse,
Keyboard:
|
PS/2,
104Key |
Camera
Input:
|
16
Port |
Sensor
Input:
|
8
Port |
Audio:
|
8
Port |
Control
Output:
|
8
Port |
Display
Speed:
|
480
FPS(NTSC), 460FPS(PAL) |
Recording
Speed:
|
240
FPS(NTSC), 220FPS(PAL) |
Compression:
|
MPEG4,
MPEG4+ |
Resolution:
|
640x480,
320x240, 160x120 |
Size:
|
2
- 15 kbyte |
Motion
Detection:
|
10-Region
per channel/Adjustable sensitivity |
Recording
Mode:
|
Continuous,
Motion, Sensor, Pre-Alarm, Scheduled Recording |
Remote
Access:
|
PSTN,
ISDN, DSL, LAN and TCP/IP |
Backup
Device:
|
Standard:
CD-RW
Optional: 3.5", DAT, DVD-RW |
PAN/TILT/ZOOM:
|
RS-232,
422, 485 Interface (Option) |
Case
Type:
|
Industrial
Case |
|
